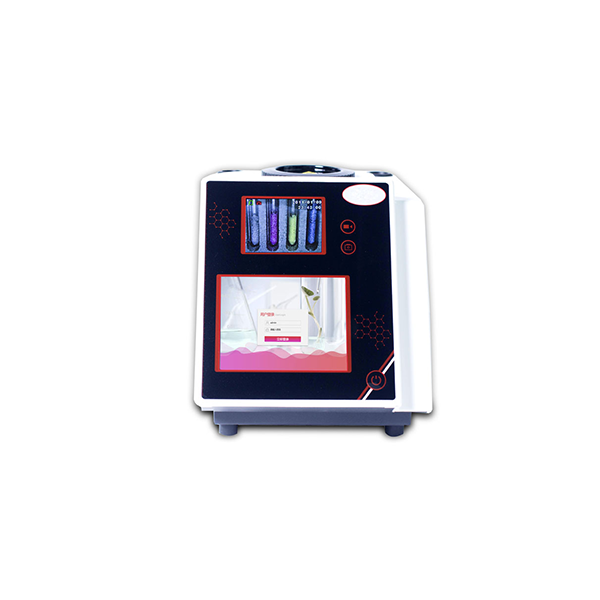

JH70 Capillary melting point meter
The capillary melting point tester combines high-precision temperature control technology and high-definition video camera technology.
Product Overview
JH70 Capillary melting point meter
The capillary melting point tester combines high-precision temperature control technology and high-definition video camera technology,which not only provides users with accurate,stable and reliable test results,but also brings users an efficient and convenient test experience.
Title goes here.
1:High-definition video instead of traditional microscope visual observation;,
2:Process 4 samples at a time;,
3:High automation integration,realize one-key measurement function;,
4:Automatically record melting process,initial melting,final melting;,
5:Compatible with measuring powder and block(melt is optional).
PRODUCT SPECIFICATIONS
Model |
JH70 |
Temperature range |
RT -350℃ |
Exploration mode |
NO |
Temperature resolution |
0.1℃ |
Accuracy |
±0.3℃ (<250℃) ±0.5℃ (>250℃) |
Repeatability |
Melting point repeatability was ±0.1℃at 0.1℃/Min |
Video function |
NO |
Magnification |
7 times |
Display method |
TFT HD color screen |
Data storage |
8G |
Graph save |
10 units |
User management |
YES, 8 units |
Data saving |
400 units |
21 CFR part 11 |
NO |
Data interface |
USB , RS232, RJ45 |
Packing Size |
430*320*370mm |
Power supply |
110-230V,50/60Hz,120W |
Gross Weight |
6.5 kg |
